- Description

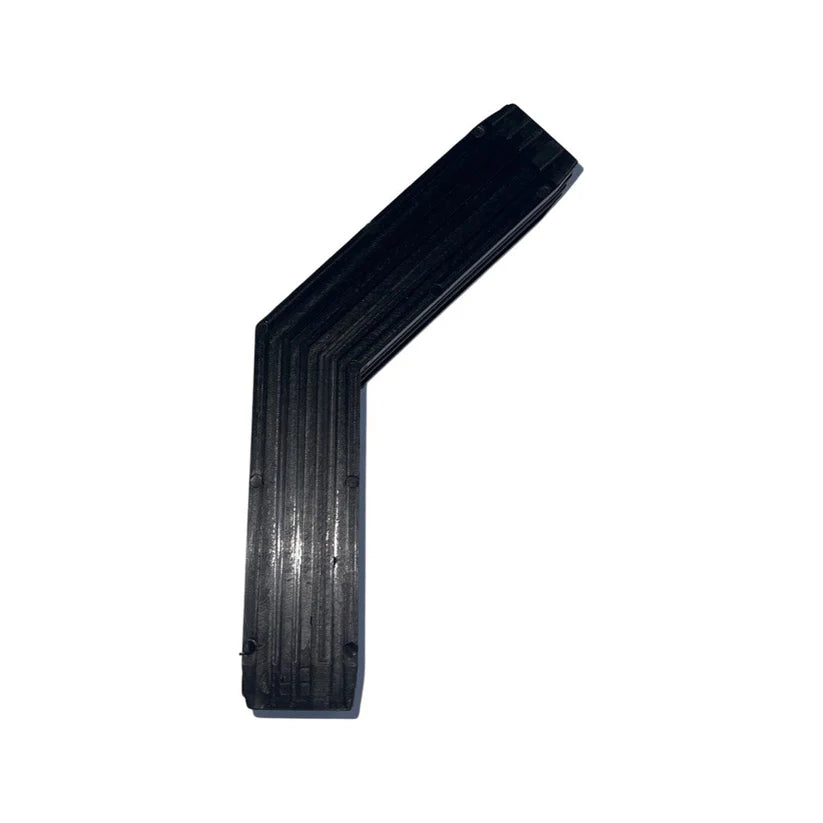

Perforated Pool Fence 135 Degree Corner Rake Bracket This item is a patterned product designed to be AS1926.1 pool-safe and compliant, meeting all structural engineering requirements.
Framing Cutting and Assembly Instructions Tools Required:
- Drill Driver with #2 Sq drive bit
- Angle Grinder with 1mm cut-off blade for cutting perf sheets (if needed)
- Aluminium Mitre Saw for cutting framing at 45-degree angles
- Sanding disk or flap disk attached to grinder to sand corner brackets if necessary for a perfect fit
Each 6500 framing kit produces one 2000-meter completed panel.
To adjust the perf panel size:
- Add 40mm to the frame cut length. Example: A 1140x1960 perf panel becomes 1180x2000mm.
- Cut 2 x 1180mm at 45-degree mitre and 2 x 2000mm at 45-degree mitre.
Assembly Steps:
- Insert corner brackets into the frame.
- Secure them by screwing through the perf sheet into the frame and bracket for a robust connection.
- Use 4 screws for each corner and additional screws spaced every 200-300mm along the sheet.
- Finish by snapping on a cover clip to conceal all fixings.
Follow these steps for a smooth assembly process!
Why Opt for Our Perforated Pool Fence?
- Premium Quality: Crafted from marine-grade aluminium for durability and longevity.
- Easy Maintenance: Simple to clean and requires low maintenance efforts.
- Strength and Durability: Featuring a robust 38×38 extruded frame, setting a benchmark in the market.
- Unique Corner Bracket Design: Ensures enhanced strength, safety, and peace of mind. Offering both 90-degree and 135-degree options for various framing needs, enabling easy construction of standard, raked, and stepped panels.
- High-Quality Fasteners: Equipped with premium stainless steel self-drilling wafers.
Choose our Perforated Pool Fence for a combination of premium quality, durability, and ease of installation!
