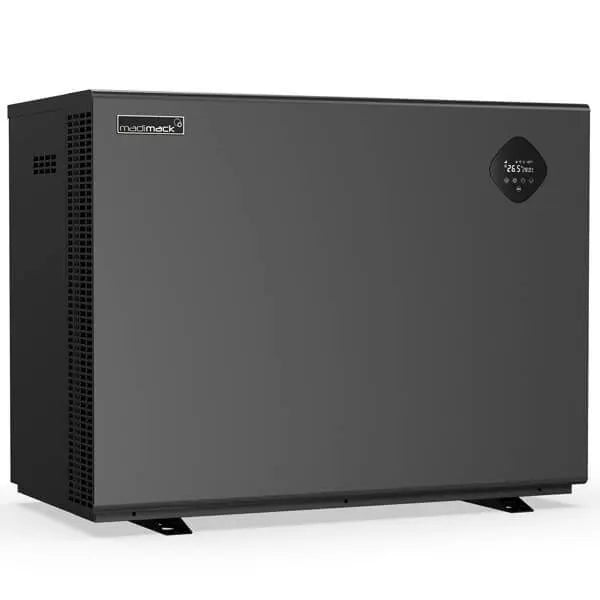

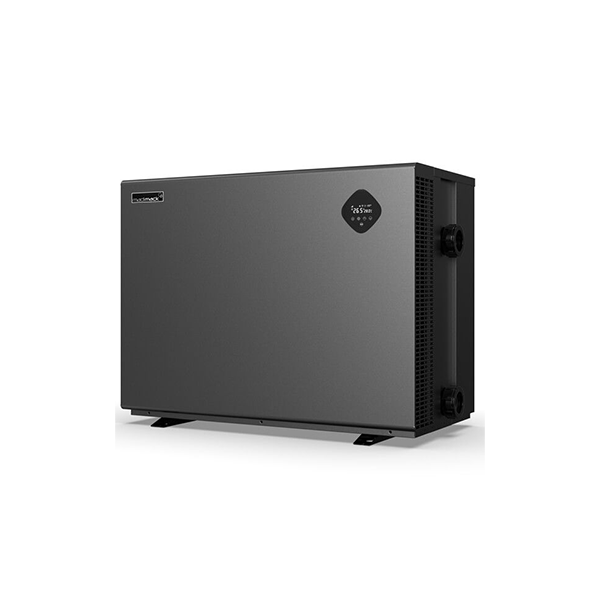

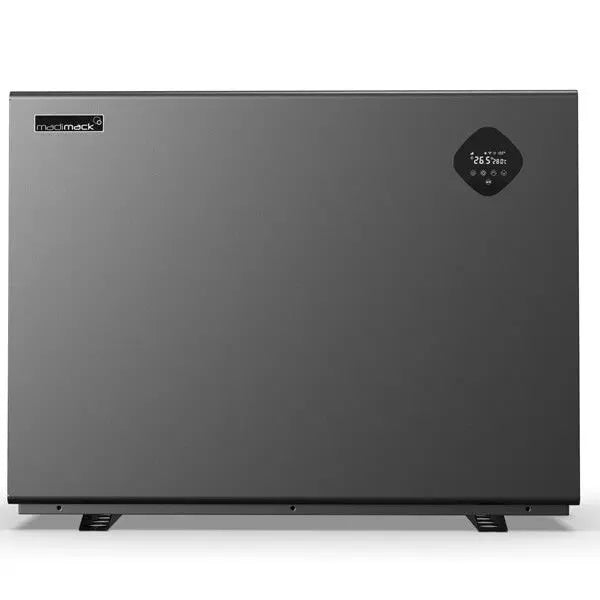

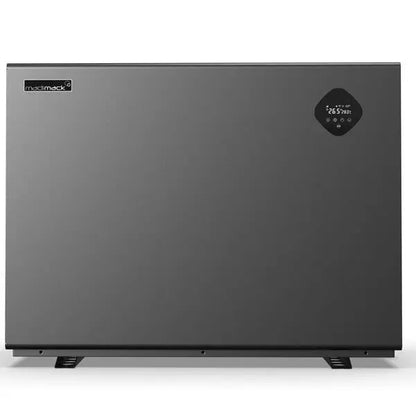

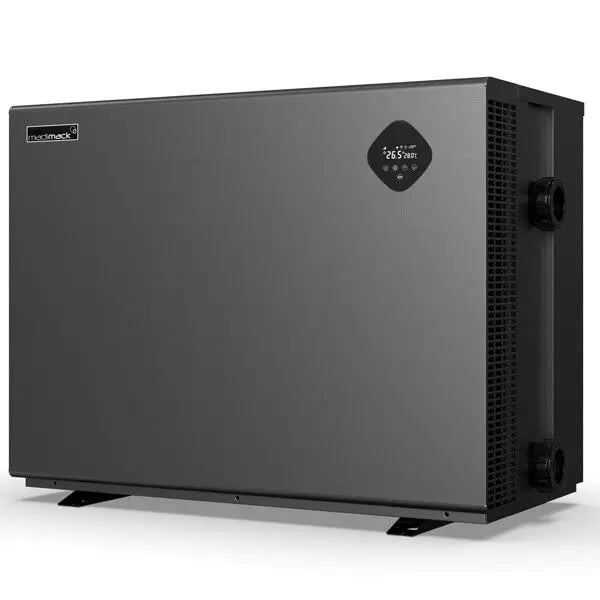

Elite V3 - Advanced Inverter Pool Heat Pump Series
Available from 11.5KW to 40.5KW
The Elite V3 has been redesigned from the ground up to bring a revolutionized pool heating system to the Australian market. In conjunction with the newest inverter technology, the unit delivers better airflow, higher efficiency, quieter operation, and performance.
The unit exclusively delivers market-leading installation requirements of 100mm from the back and 300mm from the side, providing space-saving options for Queensland backyards.
Engineered with durability in mind, the Elite V3 operates at optimal levels even in the most corrosive and erosive environments, achieving a massive 31.8kW in a single phase. The Elite V3 sets the standard for all other heaters.
- Revolutionary design that redirects airflow to dramatically reduce spatial requirements
- Extremely energy efficient with a COP of up to 16.4
- Full inverter stepless compressor and fan
- Sleek design
- Six models up to 31.8kW in a single phase
- Three-phase 40kW model
- Patented silent design
- Marine-grade anti-corrosion aluminium alloy casing
- Signature diamond touch screen and intuitive display
- WiFi with smart functions
- Newest most eco-friendly R32 Refrigerant
- Three-coil evaporator for a more compact unit size
- TüV Rheinland certified
- Up to 40 degrees set-point temperature
- Industry-first centrifugal fan
- Advanced cold air performance
- Highest performing single-phase unit
- Air Flow – Premium Side Discharge
Models:
-
SP-MM-ESV3-110: 11.5kW – 8.9 Rated Amps - 15A 3 Pin Plug
-
SP-MM-ESV3-140: 14kW – 10.9 Rated Amps - 15A 3 Pin Plug
-
SP-MM-ESV3-170: 17kW – 14.0 Rated Amps - Single Phase
-
SP-MM-ESV3-220: 22.5kW – 17.4 Rated Amps - Single Phase
-
SP-MM-ESV3-270: 26.9kW – 20.0 Rated Amps - Single Phase
-
SP-MM-ESV3-320: 31.5kW – 25.0 Rated Amps - Single Phase
-
SP-MM-ESV3-400: 40.5kW – 11(3) Rated Amps - Three Phase
Warranty:
- 25-year titanium heat exchanger
- 10-year compressor
- 5-year all parts
Contact Us:
For expert pool advice, assistance in choosing the right equipment for your swimming pool, or any other pool-related inquiries, please feel free to reach out to contact Darren from Pool Equipment Brisbane.
Product Manual
Manual for Madimack Elite V3 Pool Heat Pump Download
Product Specifications
Specifications for Madimack Elite V3 Pool Heat Pump Download
Heating Capacity (kw)
11.5, 14, 17, 22.5, 26.9, 31.5, 40.5
